| VK3NX Australian Amateur Radio Station |
| 432 MHz EME |

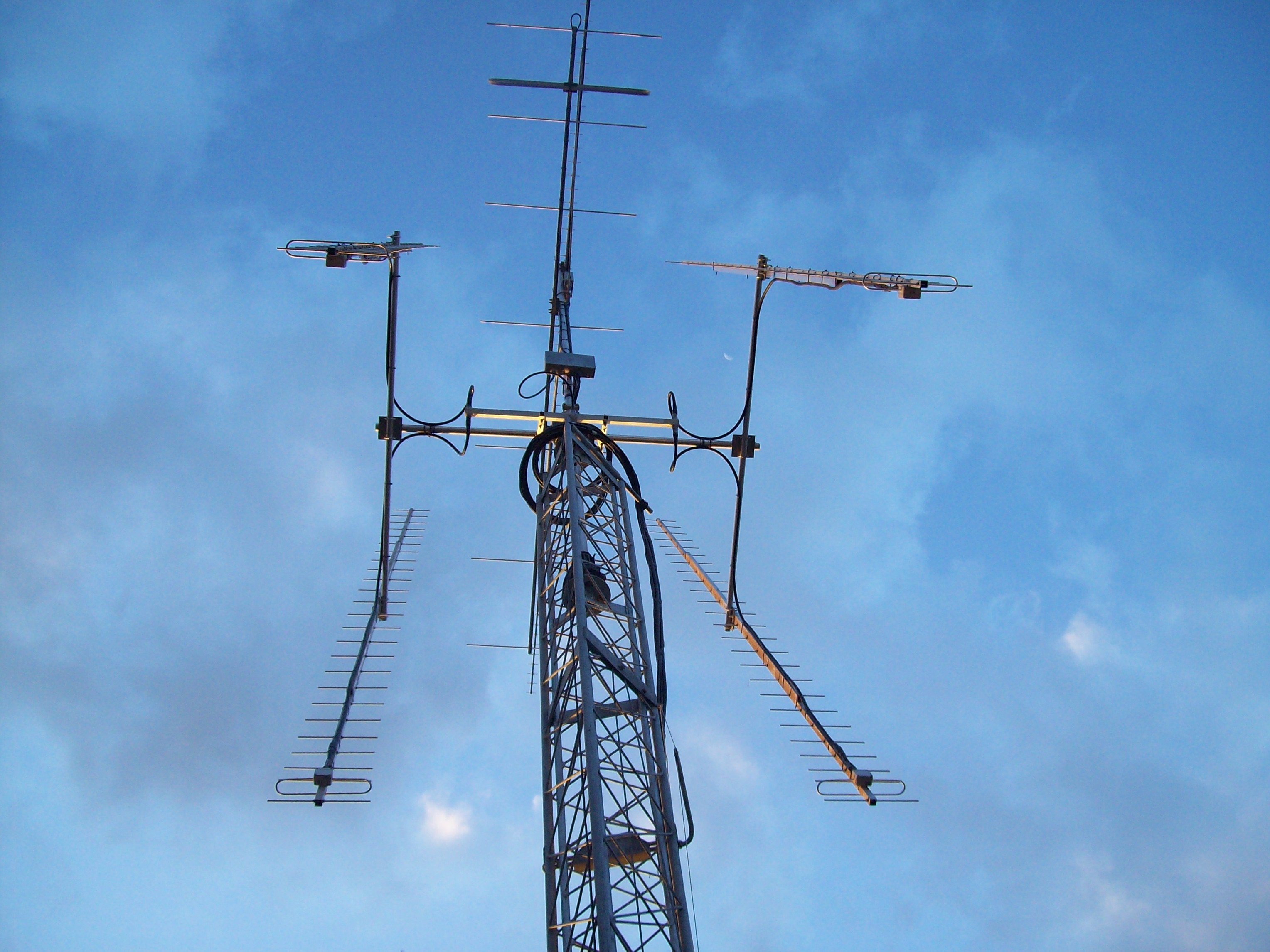

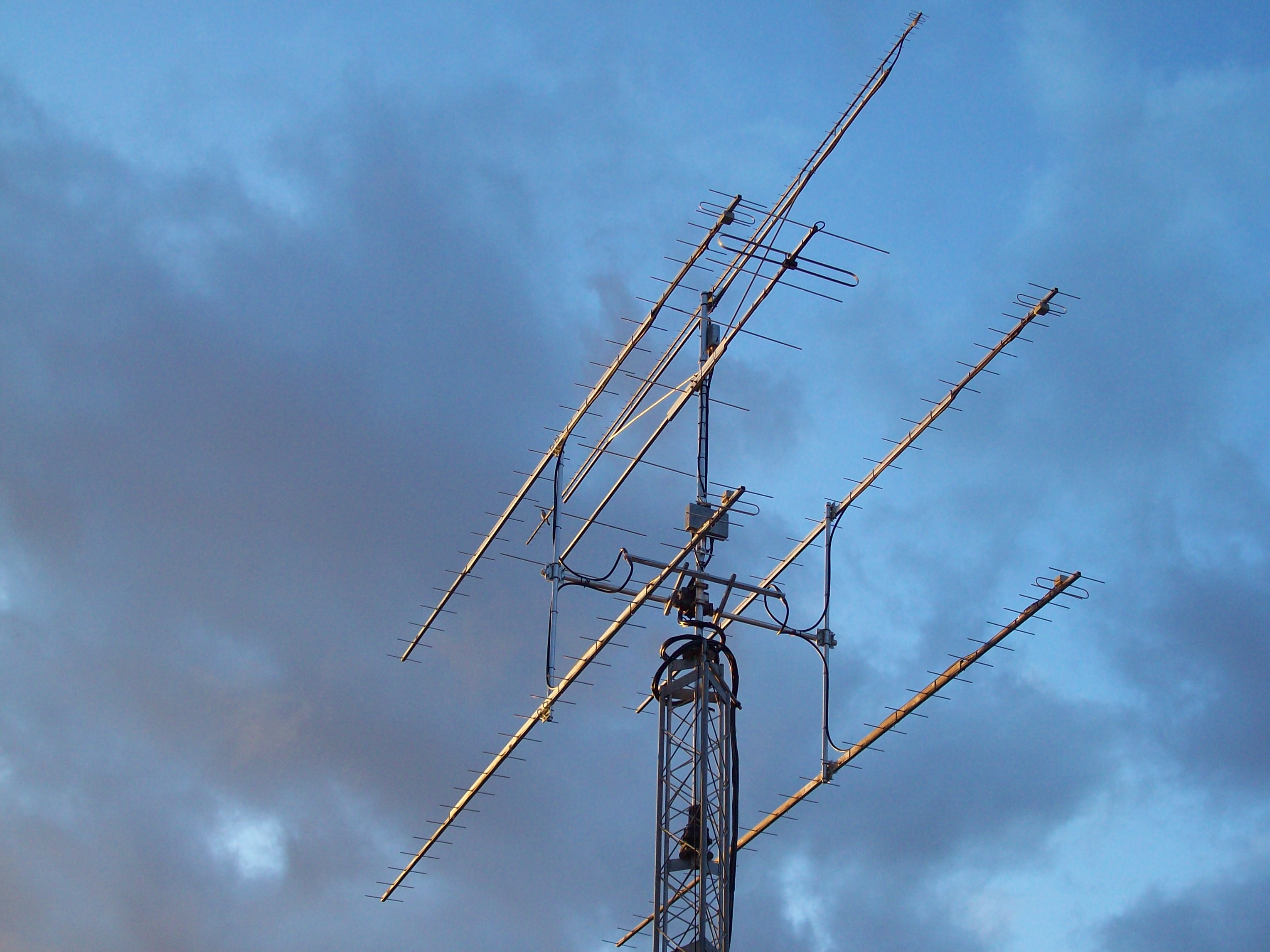

After a number of years since my first CW EME contacts
on 432 MHz I have finally placed 4 yagis (BVO / 8.5 wL)
on an elevation rotator on my main VHF-UHF tower.
The divider is "round tube in Rectangular" coaxial line
and is 3/4 wL long at 70cm.

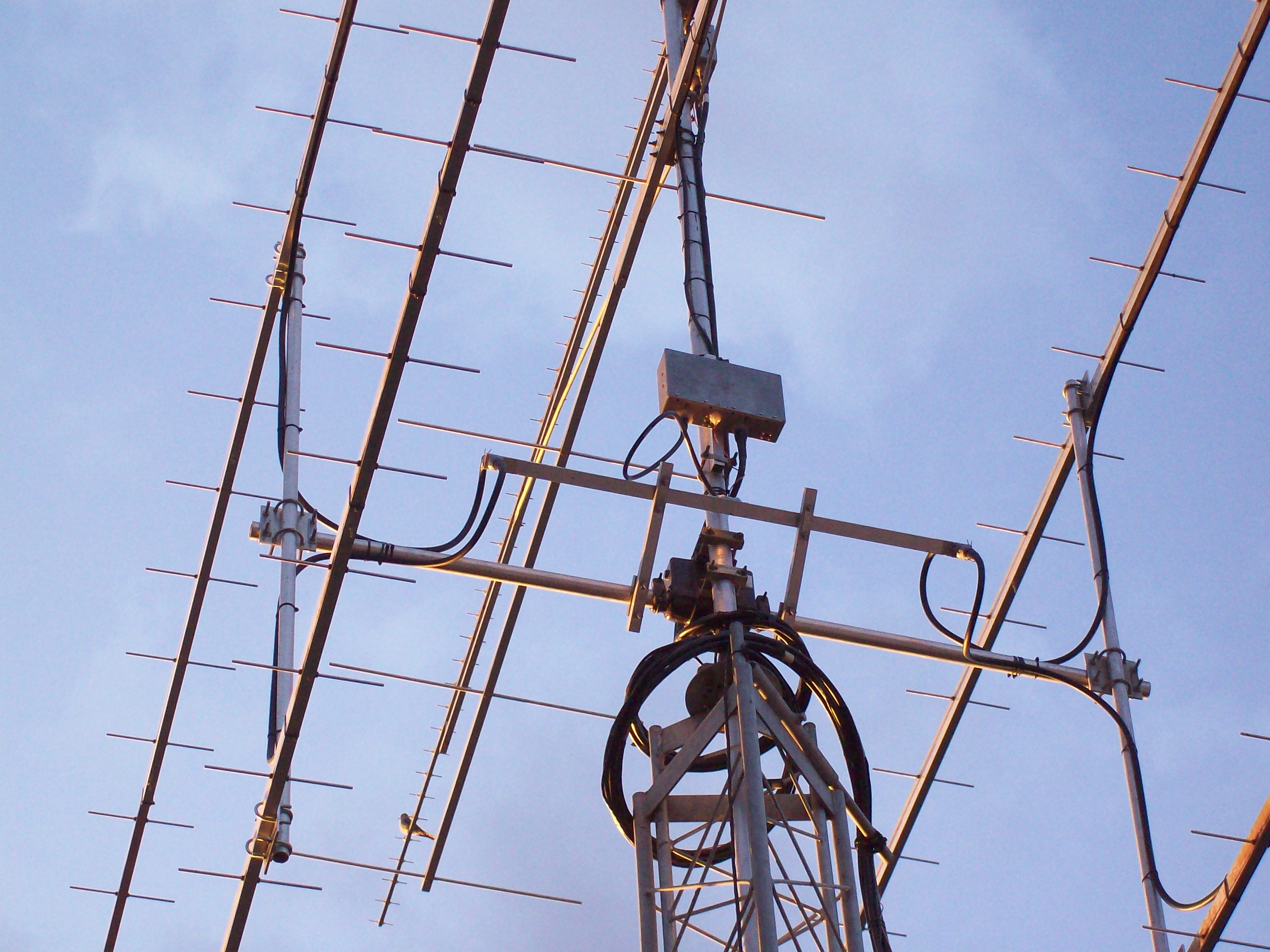

The mounting of my divider and preamp can be seen in
the photograph on this page.
The radio is a homebrew transverter followed by my
MRF646 amplifier driving a GS-35b amplifier that
produces 1kW. (* High power permit granted by
ACMA).
At present my IF driver is an FT2000 running at 28 MHz.
on 432 MHz I have finally placed 4 yagis (BVO / 8.5 wL)
on an elevation rotator on my main VHF-UHF tower.
The divider is "round tube in Rectangular" coaxial line
and is 3/4 wL long at 70cm.
The mounting of my divider and preamp can be seen in
the photograph on this page.
The radio is a homebrew transverter followed by my
MRF646 amplifier driving a GS-35b amplifier that
produces 1kW. (* High power permit granted by
ACMA).
At present my IF driver is an FT2000 running at 28 MHz.
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
My QRP Setup on 70cm .............
